SwCA Scan Profile - Windows

To create a new profile for SwCA scan on Windows assets, click Create > Windows Scan Profile.

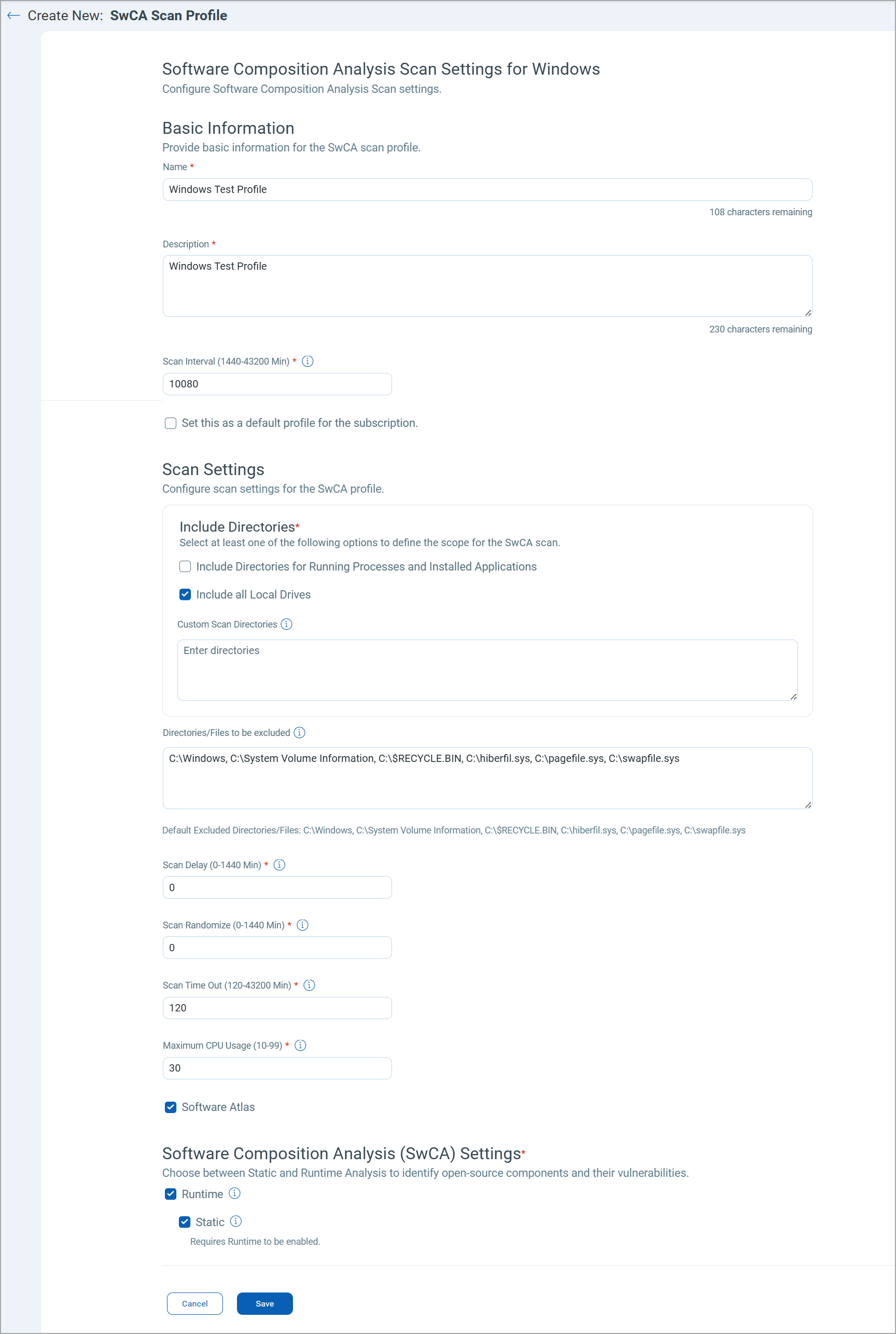

1. In the Create New - SwCA Scan Profile page, enter the following information:


   Basic Information
   - Enter Name and Description for the new scan profile.
   - Scan Interval - Define the interval, in minutes, at which the agent scans the assets associated with this profile. The default value is 10080 minutes.

   If you want to set this scan profile as a default software composition analysis scan profile for your subscription, select the Set this as a default profile for the subscription check box. This will be a user-defined default profile.
2. Scan Settings
   You can define the scope for SwCA scan by adding directories to be included in the scan. You can also define the files or directories that you want to exclude from the scan.

   Include Directories for Running Processes and Installed Applications
   Select this checkbox to run the Quick SwCA Scan. If you select this option, the SwCA Scan is launched only for the directories that have running processes and directories where applications are installed.

   Include all Local Drives
   If you want to include all local drives for SwCA scan, select the Include all Local Drives check box.

   Include only specific directories in the scan scope to reduce CPU and memory consumption.

   Custom Scan Directories
   You can define the directories to be included in the scan. By default, the */ directory is included for scanning. You can enter multiple directories separated by comma.

   Select at least one of three options to include directories for SwCA scan. The directories added in the Custom Scan Directories field are scanned only once, even when the Include all Local Drives check box is selected.

   Ensure that only the absolute path is supported. The field does not support wildcard characters and regular expressions.

   Do not end the directory list with a comma (,) to avoid errors while creating the SwCA scan profile.


   Directories/Files to be excluded
   You can exclude specific files or directories from the SwCA scan. To define the files/directories to be excluded, you can enter multiple directories separated by comma.

   Do not end the directory list with a comma (,) to avoid errors while creating the SwCA scan profile.

   Ensure that only the absolute path is supported. The field does not support wildcard characters and regular expressions.

   Exclude the directories that contain relevant data for the SwCA scan to reduce CPU memory consumption.


   Scan Delay - Define the time in minutes to delay the start of the scan, both for new installs and interval scans. The time range is 0 - 1440 minutes. A Scan Delay of 0 means no delay is added to the start of the scan.

   Scan Randomize - A range of randomization is added to Scan Delay to offset scanning. For example, if the value for Scan Randomize is set to 60, then a random value between 1 and 60 is calculated and used to delay the start of the next scanning interval. The range for Scan Randomize is 0 - 1440 minutes.

   Scan Time Out - Define the maximum time after which the scan is terminated. The default value is 120 minutes.

   CPU Usage - Enter the maximum CPU consumption allowed for the SwCA scan process. However, a momentary spike can occur in CPU usage.
   Valid range - 10-99%. Default value - 30%.

   Run Quick Scan - Select the checkbox to run the scan for the running processes.

   Software Atlas

   Select this checkbox to enable the software to component mapping data collection. If enabled, the SwCA automatically collects software to component mapping data at regular intervals. This option is disabled by default.

   To learn more about this feature, refer to Software Atlas (Software to Component Mapping).

   Software Composition Analysis Settings

   Select the Runtime or Static checkbox to select the settings for Software Composition Analysis.

   This feature is supported only on Windows, Linux, and Linux_Ubuntu platforms and will be available only when the Windows and Linux agent binaries with SwCA Runtime Analysis support is available. For the supported platform and Windows agent version, refer to Features by Agent Version section in the Cloud Agent Platform Availability Matrix.

   Runtime: Select this checkbox to scan the software components in the production environments to detect runtime software components (open-source software, libraries and associated vulnerabilities) of installed application.

   The Software Composition Analysis Settings feature is available for Windows Cloud Agent 5.3.0 and later versions if the SwCA binary with required support is installed on your assets.

   Static: Select this checkbox to scan the development (build) environments to detect software components (open-source software, libraries and associated vulnerabilities) of application.

   You must select the Runtime checkbox to enable the Static analysis for the SwCA Configuration profile.

3. Click Save.
