Install the App

Go to the GitHub repository of the Jira connector application
Copy the docker-compose.yml file to your local directory on the machine where you intend to set up the Jira connector application.
Open the docker-compose.yml file. Under environment, edit “SPRING_REDIS_HOST” and provide the IP address of the host running the Jira connector application.

Refer to the following for a sample YAML file configuration.

Sample - yaml

version: "3.4"
services:
    qualys-client-service:
        image: qualys/qualys-client-for-jira-integration:1.3.0
        networks:
            - qualys-jira-connector
        volumes:
            - qualys-jira-volume:/opt/qualys/common/jiraconnector/
        environment:
            - SPRING_REDIS_HOST=#vm_ip_address
            - SPRING_REDIS_PORT=6379
            - SPRING_REDIS_USER=default
            - SPRING_REDIS_PASSWORD=JiraConnectorRedisDB

    redis-client-service:
        image: qualys/redis-test:1.2.0
        networks:
            - qualys-jira-connector
        ports:
          - 6379:6379
        volumes:
          - qualys-jira-volume:/opt/qualys/common/jiraconnector/

    jira-client-service:
        image: qualys/jira-client-for-jira-integration:1.3.0
        networks:
            - qualys-jira-connector
        volumes:
            - qualys-jira-volume:/opt/qualys/common/jiraconnector/
        environment:
            - SPRING_REDIS_HOST=#vm_ip_address
            - SPRING_REDIS_PORT=6379
            - SPRING_REDIS_USER=default
            - SPRING_REDIS_PASSWORD=JiraConnectorRedisDB

        depends_on:
            - qualys-client-service


networks:
    qualys-jira-connector:

volumes:
  qualys-jira-volume:

- Execute the following commands from your local directory:

If you are using the docker-compose standalone installation, docker-compose up
If you are using the docker-compose plugin, docker-compose up
Spin up the container in detached mode using the parameter, -d

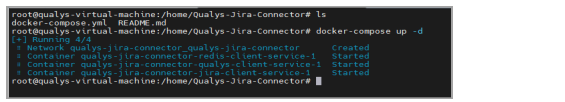

Refer to the following image to understand the command output.

- To verify the installation, execute the command, docker ps

As part of the Docker compose behavior, your local directory name with the docker-compose.yml is prefixed onto the container, volume, and network name.

Now that you have installed the application, let's see what the Jira connector application has introduced to your environment.
