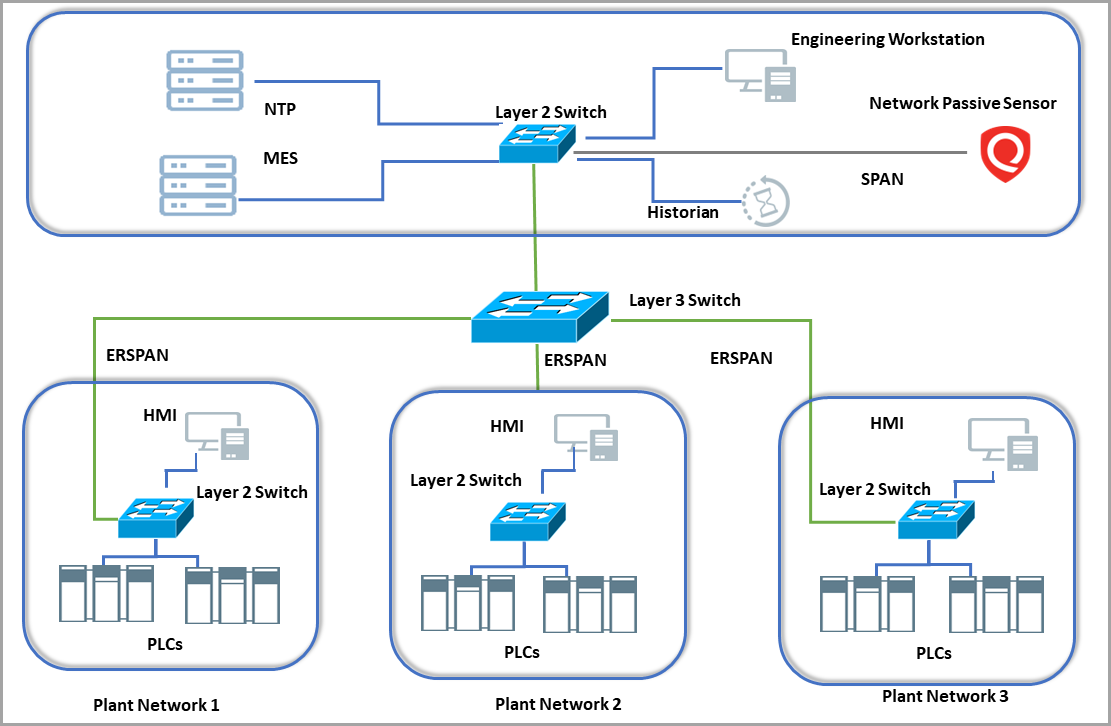

Scenario 4 – Deploying NPS in a Different VLAN

In case of industrial networks comprising various subnetworks corresponding to various processes, if ERSPANing capabilities are available on switches, deploying Network Passive Sensors (NPS) on a layer 2 switch gives the best result.

It is recommended to verify the destination network path must have enough bandwidth to support the network traffic from all the source switches.

‎
