Mirroring Techniques – Moxa
Moxa is an industrial network switch specially designed for layer 2 and layer 1 network connectivity. Moxa switches are generally found in industrial infrastructure consisting of devices manufactured by Schneider Electric.

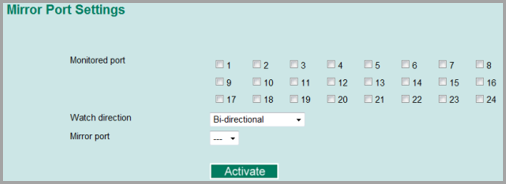

Mirroring configuration in Moxa switches is performed from web interface.
Following are the mirroring steps for EDS-728/828, IKS-6726/6726-8PoE/6728/G6524/G6824, ICS-G7000 Series:
- Log in to the switch.
- Select the number of the ports to monitor in the Monitored Port.
- Select the type of data stream to monitor (Input, Output, Bi-directional) in the Watch Direction.
- Select the number of ports to monitor the network traffic of the mirrored port in the Mirror Port.
- Select Activate to start mirroring.
For more information on mirroring techniques for Moxa switches, refer to the Official website
