How to Sniff the Traffic of VM's in the Standalone Esxi

1. Create a new port-group (e.g. Mirror-traffic) and select vswitch for sniffing traffic of VM’s on standalone esxi.
2. Enable promiscuous mode, mac address changes & forged transmits on newly created port-group. See the IMG 01.
3. Allow all vlans (i.e. vlan id 4095) on the newly created port-group. See the IMG 01.
4. Connect PS sniffing interface to newly created port-group. See the IMG 03.

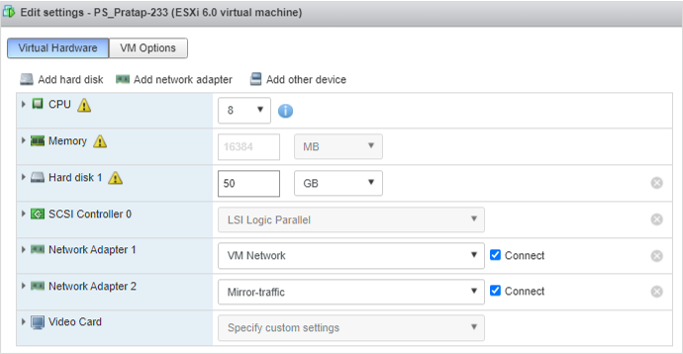

IMG: 01

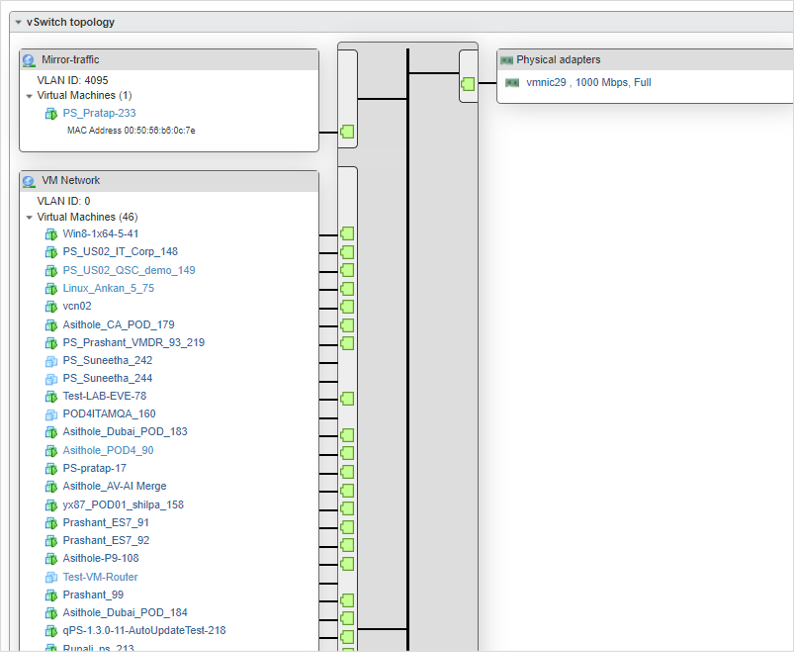

IMG: 02

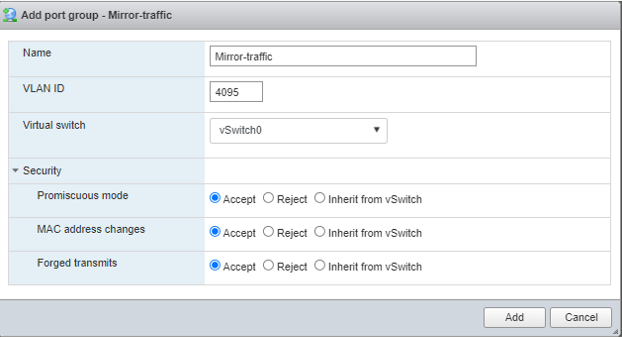

IMG: 03

Backup and restore of PS VM image:

It is not recommended to backup NPS VM images to be restored later. If the VM fails to boot due to corruption, contact Qualys support instead of re-deploying the PS VM. The NPS services on Qualys cloud account retain the sensor configuration and apply it to the appliance on reboot.
