Proxy Configuration

Proxy configuration is supported in IPv4+v6 mode (the default) and IPv6-only mode.

The Scanner includes Proxy support with or without authentication - Basic or NTLM. The Proxy server must be assigned a static IP address and must allow transparent SSL tunneling. Proxy-level termination (as implemented in SSL bridging, for example) is not supported. The Scanner does not support Proxy servers in networking environments where the Proxy server IP address is dynamically assigned. SOCKS proxies are not supported.

Steps for Proxy Configuration

Perform the following steps for Proxy configuration:

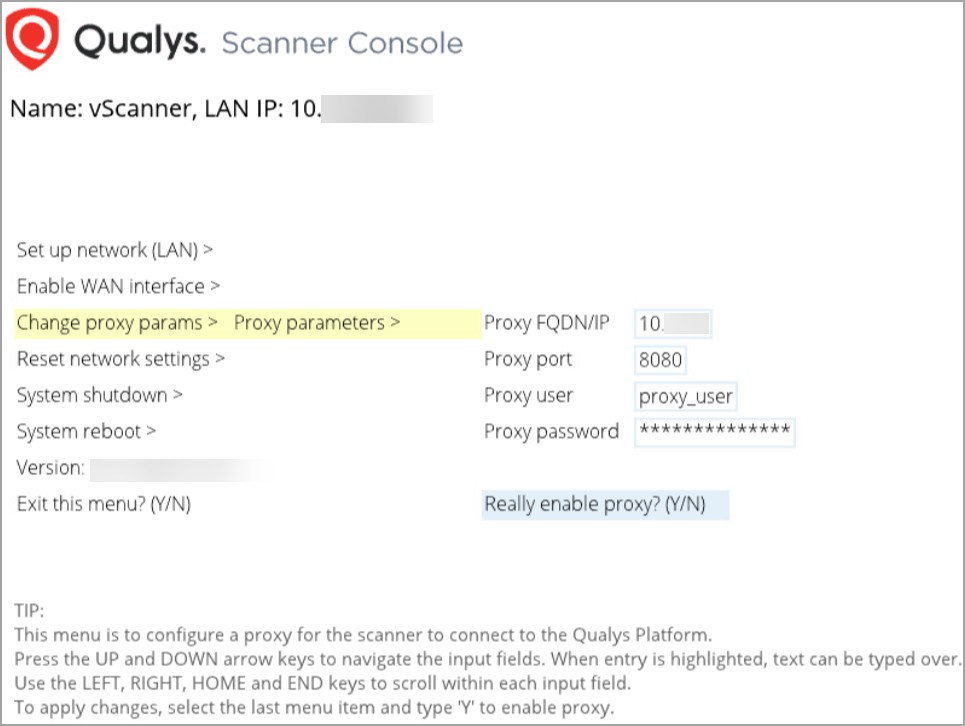

1. Access the Scanner Console.
2. Select Enable proxy, then Change proxy params, then Proxy parameters.
3. Press the Right arrow and enter proxy settings.
4. Enter either the IPv4 address or the FQDN for the proxy server.

   If you do not see the FQDN option, ensure you have the latest scanner software version.

5. When you are done, select Really enable proxy? And type Y to confirm (or N to cancel).
