MuleSoft API Connector

What is the MuleSoft API Connector?

The MuleSoft API Connector integrates between your Anypoint Platform (MuleSoft) and Qualys TotalAppSec (TAS). Once configured, the connector imports your MuleSoft API infrastructure into Qualys for automated discovery, inventory, and scanning preparation.

Category	Supported Asset Type	Supported Finding Type
API Connector	APIs	N/A (Discovery only)

Prerequisites

• Active TAS module subscription
• Valid Anypoint Platform credentials (username, password)
• Ability to access the following API endpoints from your network

Authentication Details

Field	Key	Example
Token URL	authApi	https://anypoint.mulesoft.com/accounts/login
Username	username	Your MuleSoft Anypoint username
Password	password	Your MuleSoft Anypoint account password

Connector Configuration

To activate the feature, you should have TAS module.

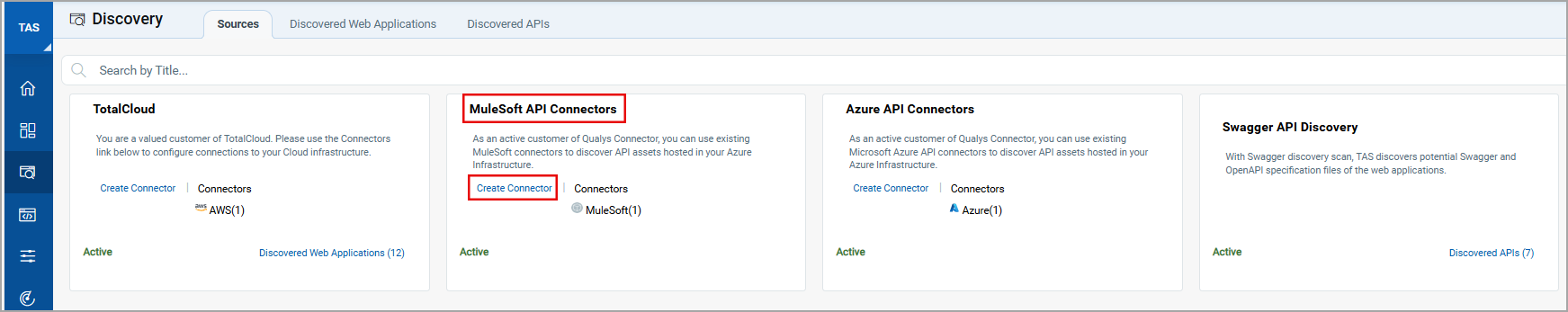

TAS > Discovery > Sources > MuleSoft API Connectors.

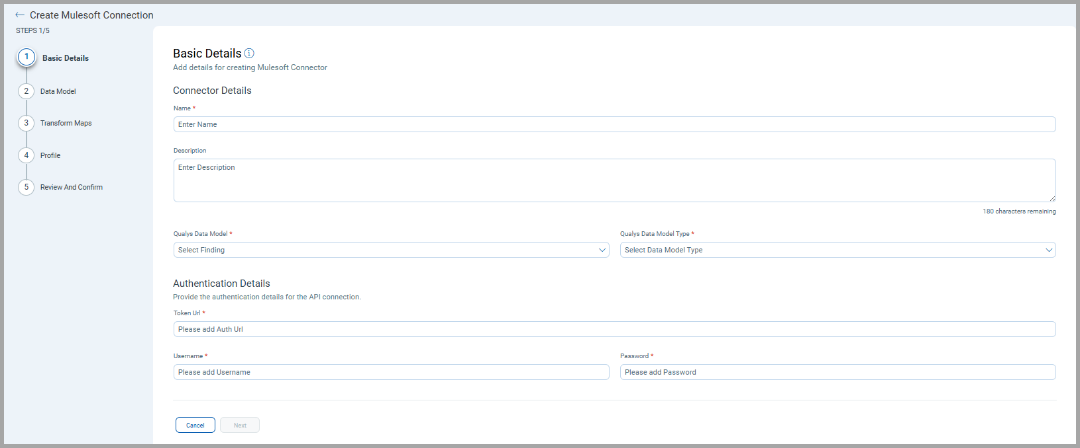

Basic Details

1. Provide a Name and Description
2. Select the Qualys Data Model (API Discovery) and Data Model Type (API)
3. Provide required Authentication Details

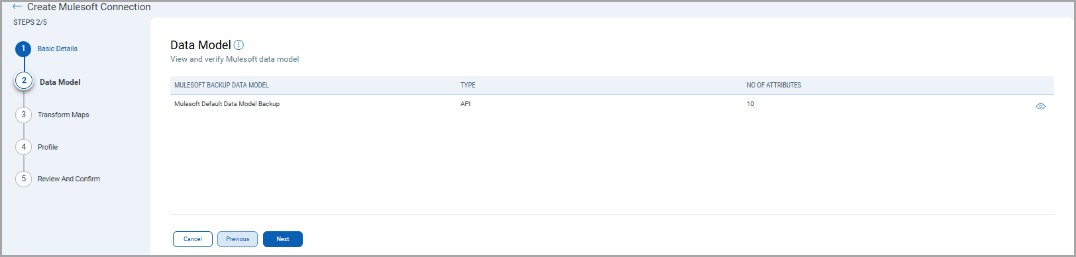

Data Model

The TAS MuleSoft API Discovery Default Data Model offers an out-of-the-box data model mapping with Qualys TAS schema. You can view the schema to understand the attributes in the data model.

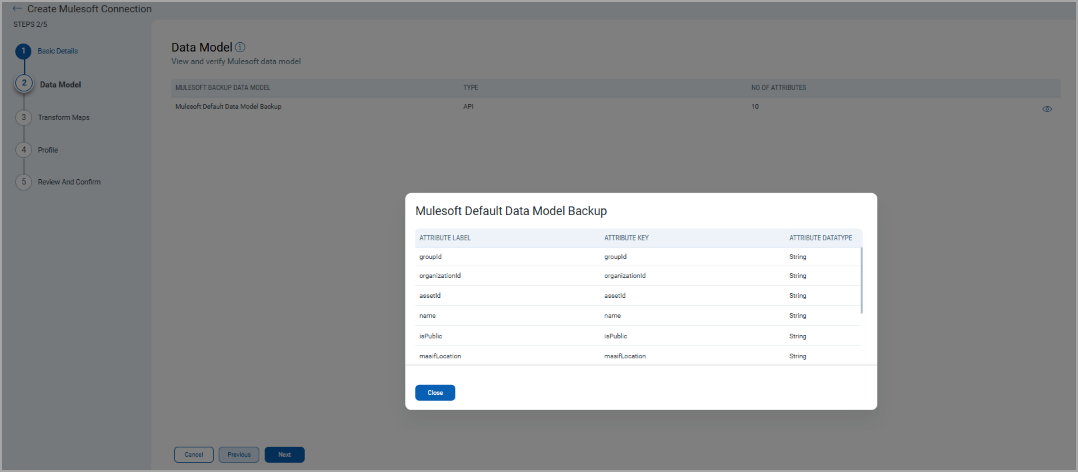

Here's the default data model mapping.

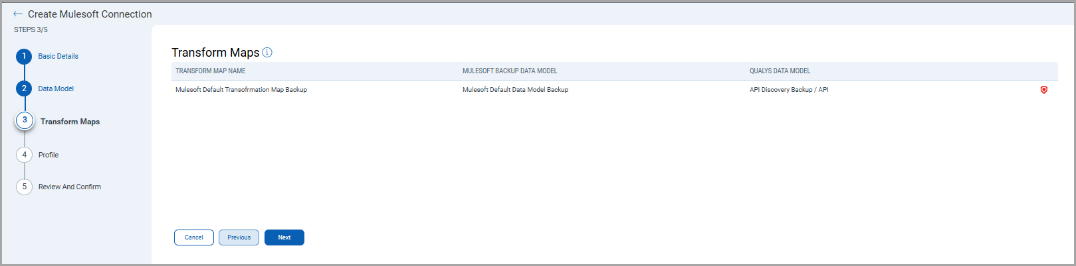

Transform Maps

Map the fields from the CSV file to the corresponding fields in your target system. Transform Maps ensure the data is transformed correctly during the import or export process.

The TAS MuleSoft API Discovery offers an out-of-box transform map for you to proceed without further configuration. View the map to understand the data transformation. Customization is optional.

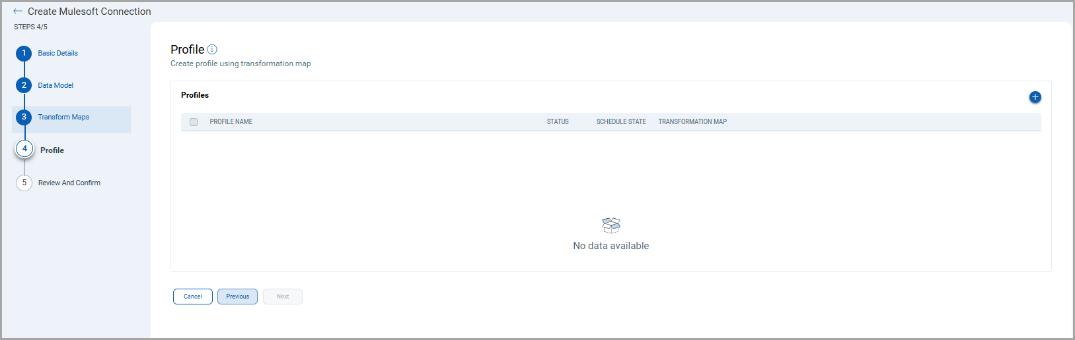

Profile Configuration

Create a profile for your connector. A profile decides the connector status, execution schedule and transform map to choose. The connector follows the configurations of this profile for all future executions.

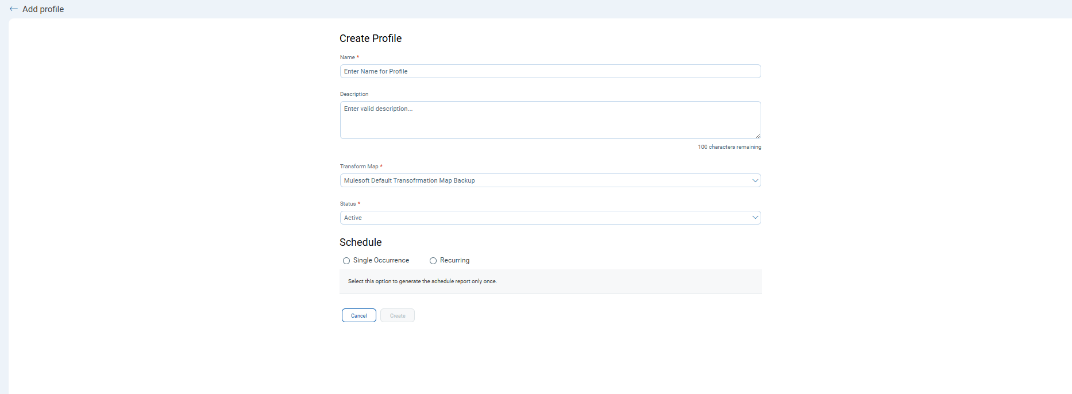

1. Click the "+" to create a new profile.
2. In the Add Profile screen, provide the necessary inputs for your new profile.
3. Provide a Name and Description.
4. Select the required Transform Map for the data mapping.
5. The Resource Types determine which resources to select for the profile. The Resource Type determine the required resource whose findings should be ingested by Qualys TAS.
6. The Status field determines whether the connector should be in Active or Inactive state after creation.

Lastly, the Schedule section lets you either create a Single Occurrence schedule or a Recurring schedule. Provide the exact date and time for the Single Occurrence execution and provide the Start and End date/time for the Recurring schedule.

Connector States

A successfully configured connector goes through 4 states:

• Registered: The connector is successfully created and registered to fetch data from the vendor.
• Scheduled: The connector is scheduled to execute a connection with the vendor.
• Processing: A connection is executed and the connector is fetching the asset and findings data.
• Processed: The connector has successfully fetched the assets, it may still be under process of fetching the findings. Wait for some more time for the connector to fetch the findings completely.

The Processed state indicates that the Connector is successfully configured but it is under the process of importing all your assets. This process may take some time.

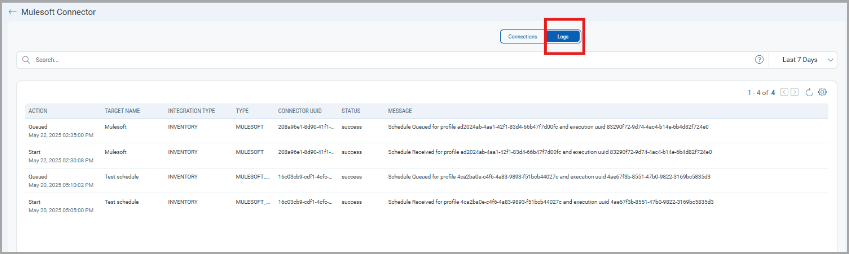

Logs

You can check the logs for the connector configured under the Logs tab.

View Assets in the TAS Application

Follow the steps to view your assets in the TAS application.

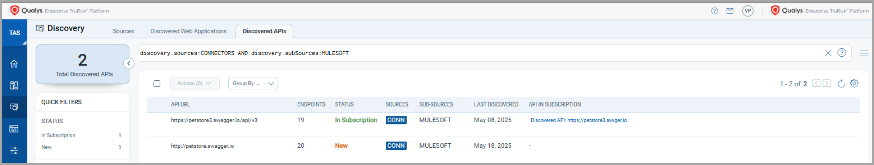

Discovered APIs

Here, you can view all the API assets discovered by the Mulesoft connector with additional details like Status, URL, Endpoints, etc.

Additional Resources

Additional Information related to MuleSoft Connector.

API Reference

Here are the APIs executed for the MuleSoft connection.

Operation	API Endpoint
Login	https://anypoint.mulesoft.com/accounts/login
Get Active Organizations	https://anypoint.mulesoft.com/apiplatform/repository/v2/organizations/ active
Get Environments	https://anypoint.mulesoft.com/apiplatform/repository/v2/organizations/ {{orgId}}/environments
List APIs	https://anypoint.mulesoft.com/apimanager/api/v1/organizations/ {{orgId}}/environments/{{envId}}/apis/
Get API Details	https://anypoint.mulesoft.com/exchange/api/v2/assets/ {{orgId}}/{{assetId}}/asset/
Download Swagger	https://exchange2-asset-manager-kprod.s3.amazonaws.com/... (dynamic path per asset)

Data Model Map

This section explains the attribute mappings of the values from Mulesoft and Qualys ETM.
