Scan Privileges for Infoblox NIOS Technology

Create a dedicated scan user account on Infoblox NIOS Grid with the minimum privileges required to perform configuration checks. The account has read-only access to the Grid, DHCP, DNS, and IPAM settings required for scanning.

Choose the privilege level for the scan user account

The privileges that you grant depend on whether you need to assess controls 24551 and 31064:

  • To assess controls 24551 and 31064, the scan user account needs the Superusers privilege. This privilege exceeds the least privilege level that is typically granted. Skip creating a custom role with least privilege, and go to creating a group for the scan user account.
  • If you don't need to assess controls 24551 and 31064, the Superusers privilege isn't required. Start by creating a custom role with least privilege.

Create a custom role with least privilege

  1. In the Infoblox NIOS Grid Manager, go to Administration > Administrators > Roles.
  2. Select Add Role.
  3. In the Role Name field, enter a name for the role. Optionally, enter a Comment.
  4. Select Next.
  5. On the next screen, select Next, and then select Save.
  6. Select the Permissions tab.
  7. Under Permissions, select the Add Permission icon.
  8. In the Select Role Permission window, select the role that you created, and then assign the following read-only (RO) permissions:


    Permission type

    Resource

    Resource type

    Permission

    DNS Permissions

    All A Records

    A record

    RO

    DNS Permissions

    All AAAA Records

    AAAA record

    RO

    DHCP Permissions

    Grid DHCP Properties

    Grid DHCP Properties

    RO

    DNS Permissions

    Grid DNS Properties

    Grid DNS Properties

    RO

    DNS Permissions, DHCP Permissions, IPAM Permissions

    All Hosts

    Host

    RO

    Grid Permissions

    All Members

    Member

    RO

    DNS Permissions

    All DNS Views

    DNS View

    RO

    DNS Permissions

    All Zones

    Zone

    RO

  9. Select Save & Close.

Create a group for the scan user account

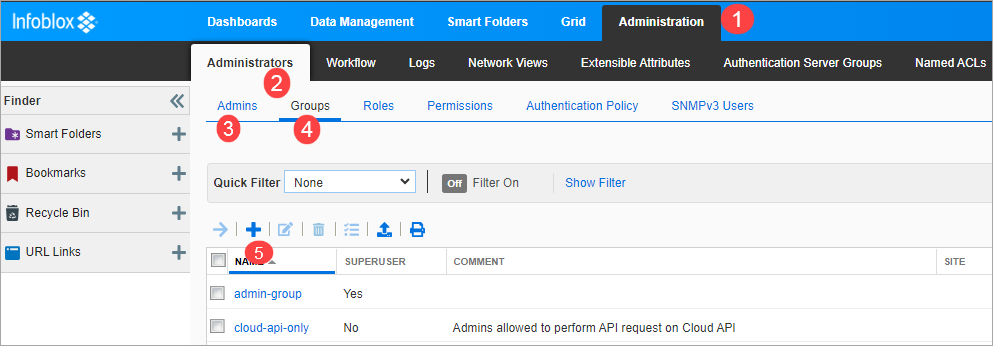

  1. Go to the Groups tab.
  2. Select Add Group.

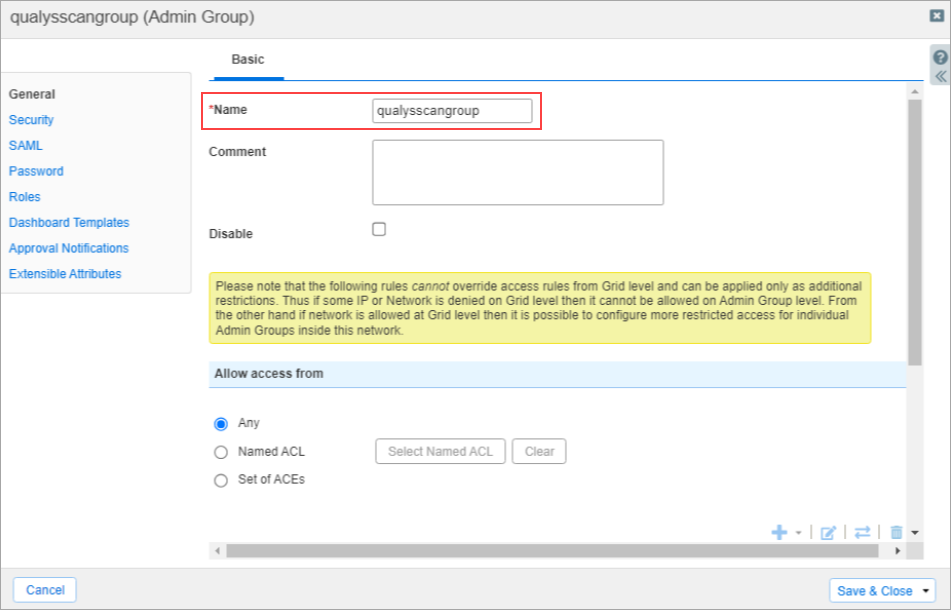

  3. Enter a Group Name. Optionally, enter a Comment. Then select Next.
  4. For steps 2, 3, and 4 of the wizard, keep the default settings and select Next.
  5. In step 5 of the wizard, select the Add Role (+) icon, and then do one of the following:
    • To grant least privilege, go to the Custom Role directory and select the role that you created in Create a custom role with least privilege.

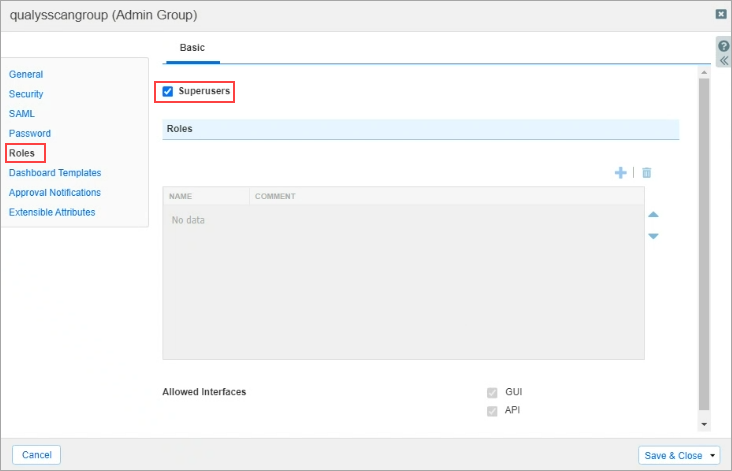

    • To assess controls 24551 and 31064, select the Superusers check box. This privilege includes all the permissions required for these controls and for the other controls.
  6. Under Allowed Interfaces, select the API and GUI check boxes.
  7. Select Save & Close.

Create the scan user account

  1. Go to the Administrators tab.
  2. Select the + icon to add a user.
  3. Set Auth Type to Local.

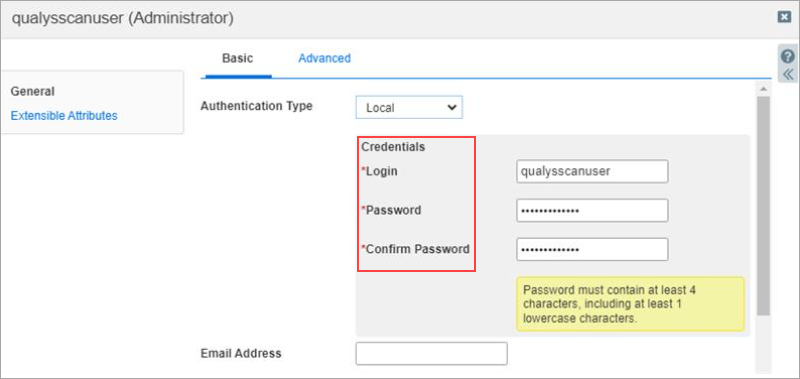

  4. Enter a Login Name and Password, and then enter the password again in the Confirm Password field.

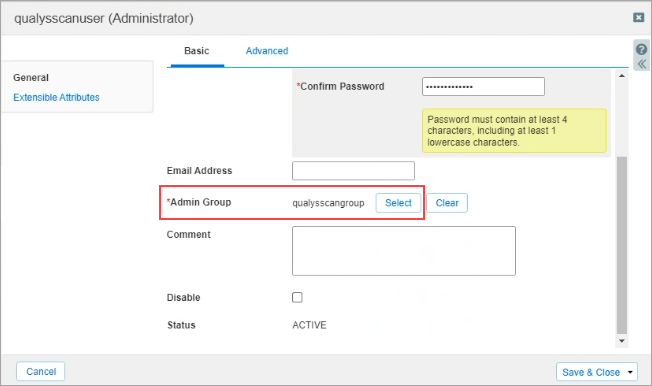

  5. Under Admin Group, select the group that you created in Create a group for the scan user account.
  6. Select Save & Close.

In an Infoblox Grid high availability (HA) deployment, scan the Virtual IP (VIP) address of the Grid Master, not the IP addresses of the individual nodes. The VIP follows the active node, because passive nodes don't serve the Web API (WAPI). Add the VIP address to the Infoblox authentication record.

You can now create an Infoblox authentication record for compliance scans. For more information, see Create/Edit Infoblox Record.
