Configure Environment Variables

To configure the environment variables on the GitLab Console, perform the following steps:

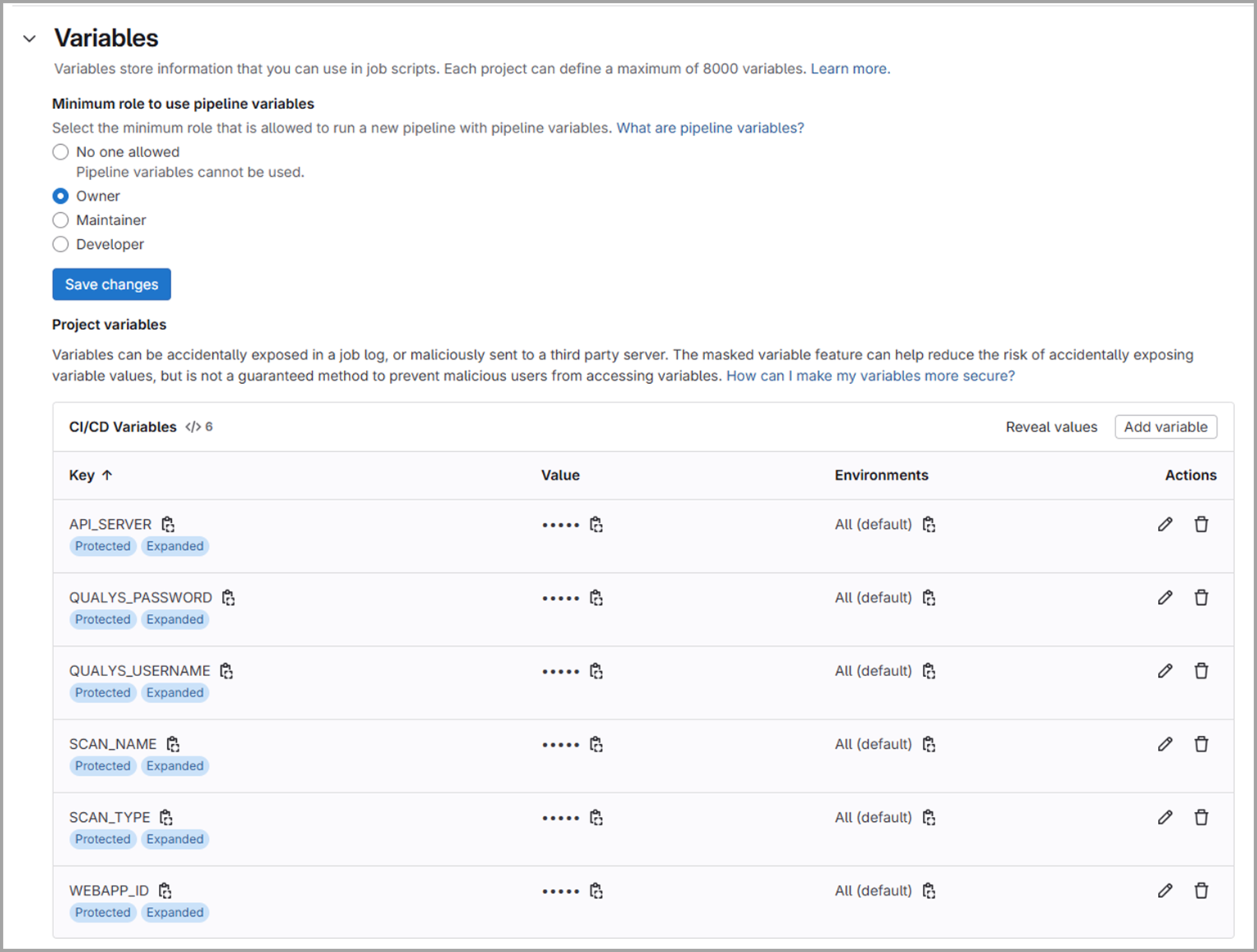

1. On the GitLab console, go to Project/Repository settings > CI/CD > Variables.



2. Provide the required details for environment variables.

   • All the parameter values given in the following table are case-sensitive.

   • To create a user-level client, see Set up Token-based Authentication from UI.

   Parameter Name	Mandatory/ Optional	Parameter Type	Description
   PLATFORM	Mandatory	String	This parameter specifies the qualys platform.    Enter platform name. For example - US1 To identify your platform, refer to Identify your Qualys platform page.
   AUTH_TYPE	Mandatory	String	Use this parameter to specify the authentication type. BASIC, OAUTH, or IDP are supported.
   QUALYS_USERNAME	Conditional Mandatory (Mandatory when AUTH_TYPE=BASIC, otherwise Optional)	String	Use this parameter to specify the Qualys username for BASIC authentication.
   QUALYS_PASSWORD	Conditional Mandatory (Mandatory when AUTH_TYPE=BASIC, otherwise Optional)	String	Use this parameter to specify the Qualys password for BASIC authentication.
   CLIENT_ID	Conditional Mandatory (Mandatory when AUTH_TYPE=OAUTH or AUTH_TYPE=IDP, otherwise Optional)	String	Use this parameter to specify the client ID for OAuth authentication.
   CLIENT_SECRET	Conditional Mandatory (Mandatory when AUTH_TYPE=OAUTH or AUTH_TYPE=IDP, otherwise Optional)	String	Use this parameter to specify the client secret for OAUTH authentication.
   WEBAPP_ID	Mandatory	Integer	Use the web application ID that you want to scan.
   SCAN_NAME	Mandatory	String	Enter a name for the scan. The timestamp gets appended automatically.
   SCAN_TYPE	Mandatory	Text	Specify the scan type -VULNERABILITY or DISCOVERY.
   AUTH_RECORD	Mandatory	Text	Specifies the authentication method to use for the Web application scan. Use one of the following values: useDefault: If you choose this value, the default authentication record is used for the web application login in the WAS application. other: If you choose this value, a specific value for AUTH_RECORD_ID is used. none: If you choose this value, the scan runs without authentication. But the scanner cannot log in to the application where authentication is required. It is the default value.
   AUTH_RECORD_ID	Conditional Mandatory (Mandatory when AUTH_RECORD=other)	Integer	Use AUTH_RECORD_ID to authenticate the web application scanning. If you are using this parameter, then you must set the AUTH_RECORD parameter value to other.
   OPTION_PROFILE	Mandatory	Text	Use one of the following values: useDefault: If you choose this value, the default Option Profile is used in the WAS application. It is the default value for the parameter. other: If you choose this value, a specific OPTION_PROFILE_ID is used for web application scanning.
   OPTION_PROFILE_ID	Conditional Mandatory (Mandatory when OPTION_PROFILE=other)	Integer	Use the option profile ID of your choice. You must set the OPTION_PROFILE parameter value to other to use this parameter.
   CANCEL_OPTION	Optional	Boolean	Use one of the following: true: Set the parameter value to true to specify the scan end time. false: The scan runs until it is completed. This is the default value.
   CANCEL_HOURS	Conditional Mandatory (Mandatory when CANCEL_OPTION=true)	Integer	Use a numeric value to specify scan duration in hours. If the scan duration exceeds the set hours, it gets terminated. You must set the CANCEL_OPTION parameter value to true to use this parameter.
   SEVERITY_CHECK	Optional	Boolean	Use one of the following values: true: This checks the SEVERITY_LEVEL of a vulnerability during a scan. false: The SEVERITY_LEVEL is not checked.
   SEVERITY_LEVEL	Conditional Mandatory (Mandatory when SEVERITY_CHECK=true)	Integer	Specify the severity level of the vulnerability. You can use any values between 1-5. A severity level of 1 is considered the least harmful, and a severity level of 5 is considered the most harmful. You can enter only one value for severity level as a scan parameter during a scan. The scan job fails if it detects a vulnerability of a specified severity level or greater. For example, if you set the severity level to 3, the scan fails if a vulnerability of severity level greater than or equal to 3 is found during the scan.
   FAIL_ON_SCAN_ERROR	Optional	Boolean	Use true or false as the parameter value. true: When the GitLab plugin initiates the scan and the value for this parameter is set to true, but the WAS application cannot complete the scan, then the scan fails. false: If you set the parameter value to false, the scan job does not fail due to an incomplete scan. The default value for this parameter is false.
   WAIT_FOR_RESULT	Optional	Boolean	Use one of the following values: true: The plugin waits for the scan results. The default value for this parameter is true. false: The plugin does not wait for the scan results.
   INTERVAL	Optional	Integer	Use a numeric value to set the polling interval in minutes to collect the scan data, such as 5.  By default, it is 5 minutes.
   TIMEOUT	Optional	Input Parameter	Use a numeric value (in minutes) to set the timeout duration for checking scan results. The default value for TIMEOUT is 350 minutes. By default, the project timeout is set to 1 hour. You can modify this value in your project settings. When both a project timeout and a runner timeout are set, the lower value takes precedence.
   EXCLUDE	Optional	Integer	Use the QIDs separated by a comma to exclude them from the scan. For example: 1234, 1345. These QIDs are excluded based on vulnerability severity level failure conditions.
   FILE_TYPE	Optional	Text	Specify the file format for the scan report. For example. PDF.
   TOKEN_URL	Conditional Mandatory (Mandatory when AUTH_TYPE=IDP, otherwise Optional)	Variable	The token endpoint URL of your Identity Provider. Required when AUTH_TYPE is IDP.
   IDP_SCOPE	Optional	Variable	Specifies the scope to request from the IDP token endpoint.
   IDP_AUDIENCE	Optional	Variable	Specifies the audience to request from the IDP token endpoint.

Authentication Type

WAS Integration with GitLab supports the following three authentication types. You need to enter the authentication type in the AUTH_TYPE variable.

Basic

OAuth

Identity Provider(IDP)

The fields displayed below depend on the selected authentication type.

Basic Authentication

Enter Basic Authentication Details (If Selected)

Provide the following details:

• Username – Enter the Qualys username.
• Password – Enter the corresponding password.

OAuth Authentication

Provide the following details:

• Client ID – Enter the OAuth client ID.
• Client Secret – Enter the OAuth client secret.

API authentication is supported using Qualys-managed tokens via a user-level client. To create a user-level client, see Set up Token-based Authentication from UI.

Identity Provider (IDP) Authentication

Enter Identity Provider (IDP) Details (If Selected)

Provide the following details:

• Client ID – Enter the IDP client ID.
• Client Secret – Enter the IDP client secret.
• Token URL – Enter the URL of your Identity Provider (IDP) token endpoint.
• Scope – Enter the scope to request from your Identity Provider.
• Audience – Enter the audience value configured for your Identity Provider.

To generate an IDP-based authentication token, see API Authentication using IdP Provider Token.

Next step

Configure Pipeline Script
