Calculate Capacity for MAP Scans

Use the MAP scan type to estimate scanner capacity for Network Mapping scans.

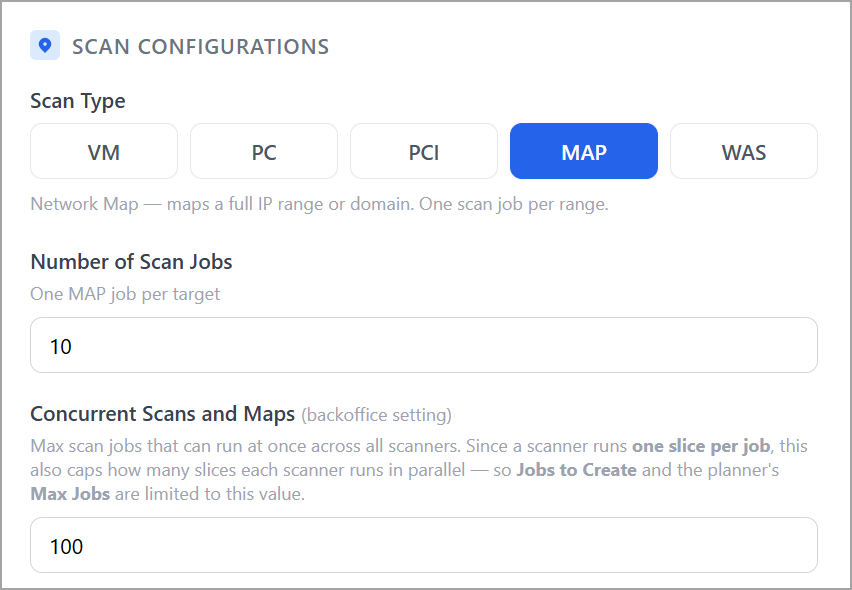

To calculate capacity for MAP scans, perform the following steps:

1. In the Scan Type section, select MAP.


2. In Number of Scan Jobs, enter the total number of mapping jobs to run.

3. In Concurrent Scans and Maps, enter the maximum number of scan jobs that run concurrently across all scanners.

4. In the Desired Scan Duration section, enter the desired completion time in hours. (Optional)


   For example, enter 10 to complete the scan workload within a 10-hour maintenance window.

   To understand the scan time planner table, refer to the Scan Time Planner section.

5. Enter the Scanner pool size to model your current scanner deployment. (Optional)

6. Review the table to find the specifications and scanner count that meets your window.

Field Descriptions

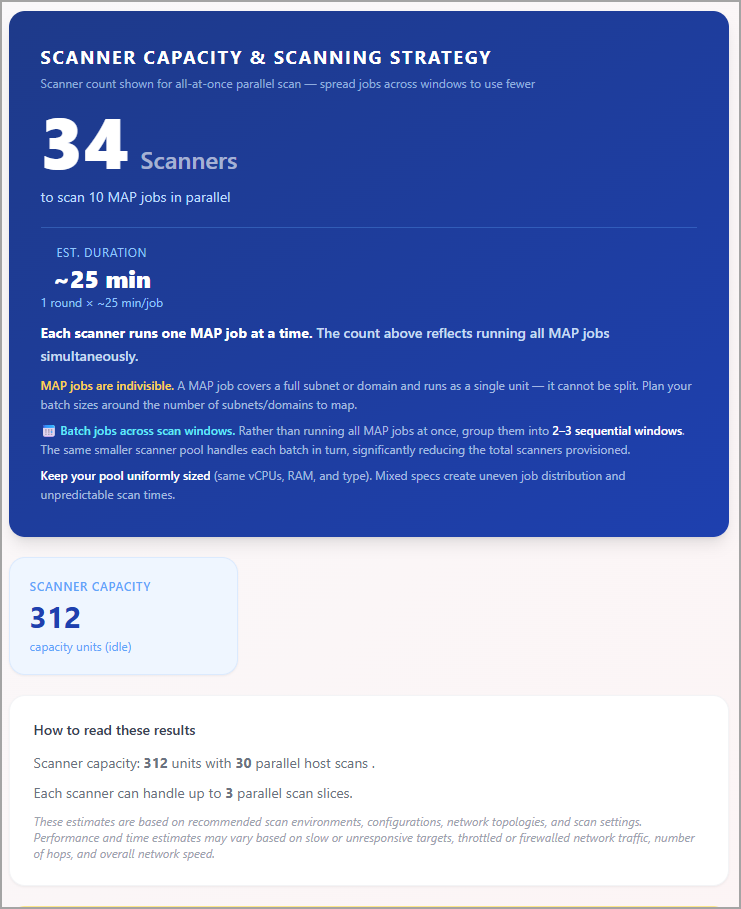

View Scanner Capacity and Scanning Strategy

You can view the results in the tables on the right side of the page. These results are based on the configuration and selected scanner type.

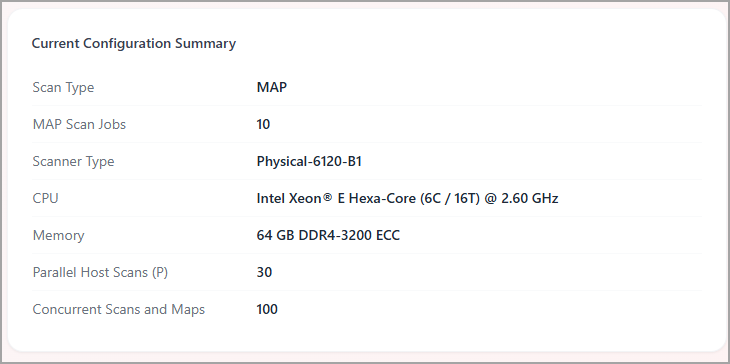

View Current Configuration Summary

You can view the set configuration at the bottom of the page.  You can reverify your configuration using this table.
